Free Body Diagrams and Reactions

Introduction

Reaction Forces are connections that prevent translation and rotation. There are three main types of reactionary forces: roller supports, pin supports, and fixed supports.

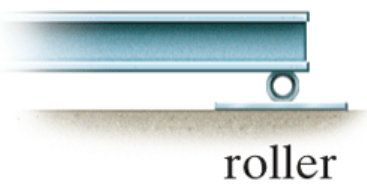

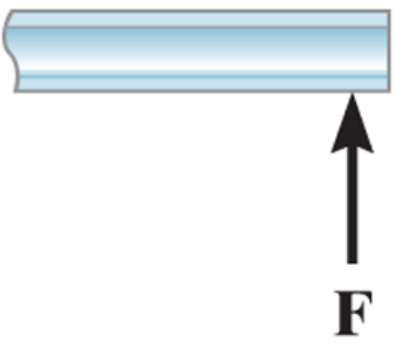

Roller Supports

Rollers only prevent beams from translating in the vertical direction.

image image

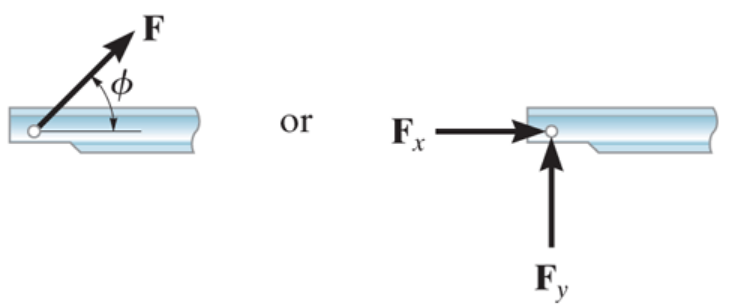

Pin Supports

Pins prevent translating in the horizontal and vertical direction, but allow rotation.

image image

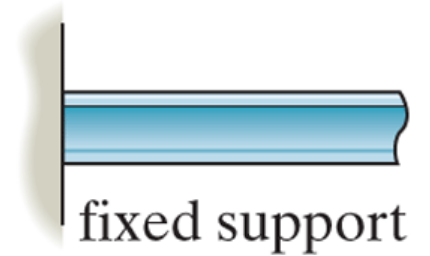

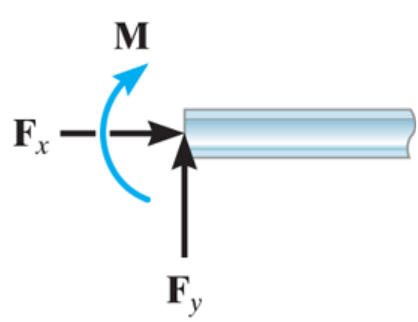

Fixed Supports

Fixed supports are most restrictive, they prevent translation and rotation.

image image

Procedure for Solving Reaction Forces

  1. Draw a FBD

  2. Draw Reaction Forces for the type of support

  3. Set up Equilibrium Equations

  4. Solve for Reaction Forces

Important Tips

  • Always draw a FBD to ensure all the forces are accounted for.

  • If a support prevents translation, then a force is exerted on the object.

  • If a support prevents rotation, then a moment is exerted on the object.

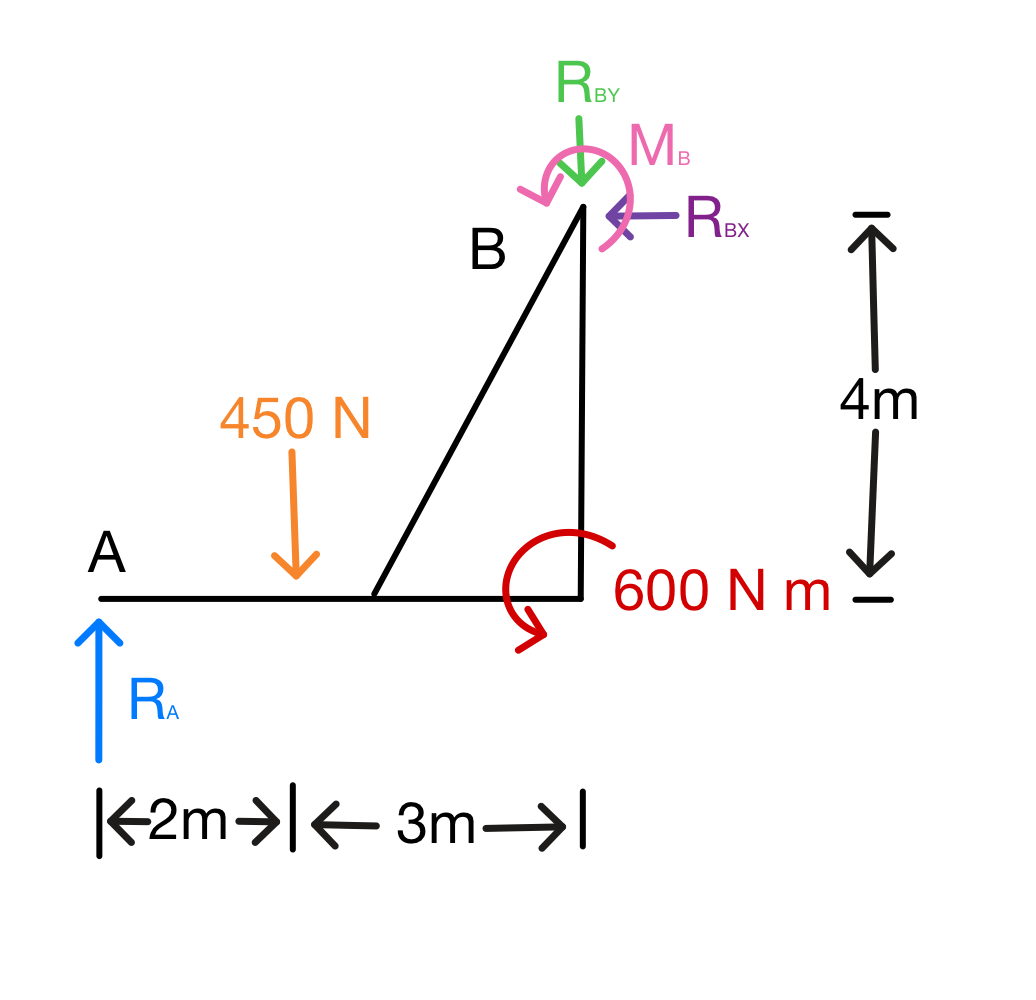

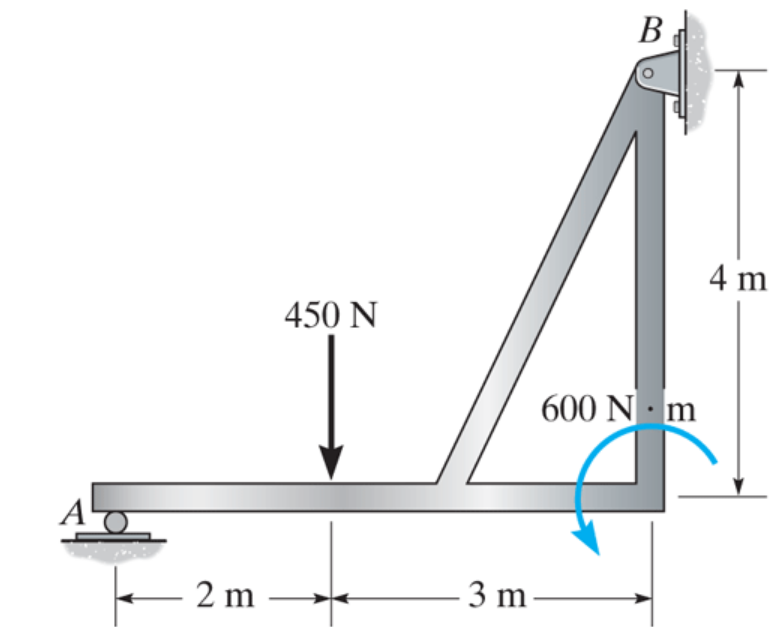

Example Problem:

Draw the Reaction Forces and create equilibrium equations

image image

Equilibrium Equations

→ Σ F X = 0 = − R B x \rightarrow \Sigma F_{X} = 0 = - R_{Bx}

↑ Σ F y = 0 = R A − R B y − 400 N \uparrow \Sigma F_{y} = 0 = R_{A} - R_{By} - 400N

⟲ Σ M B = 0 = 600 N ⋅ m + M B + ( 450 N • 4 m ) − ( R A • 5 m ) ⟲ \Sigma M_{B} = 0 = 600N \cdot m + M_{B} + (450N \bullet 4m) - (R_{A} \bullet 5m)
