Projectile Motion

Introduction

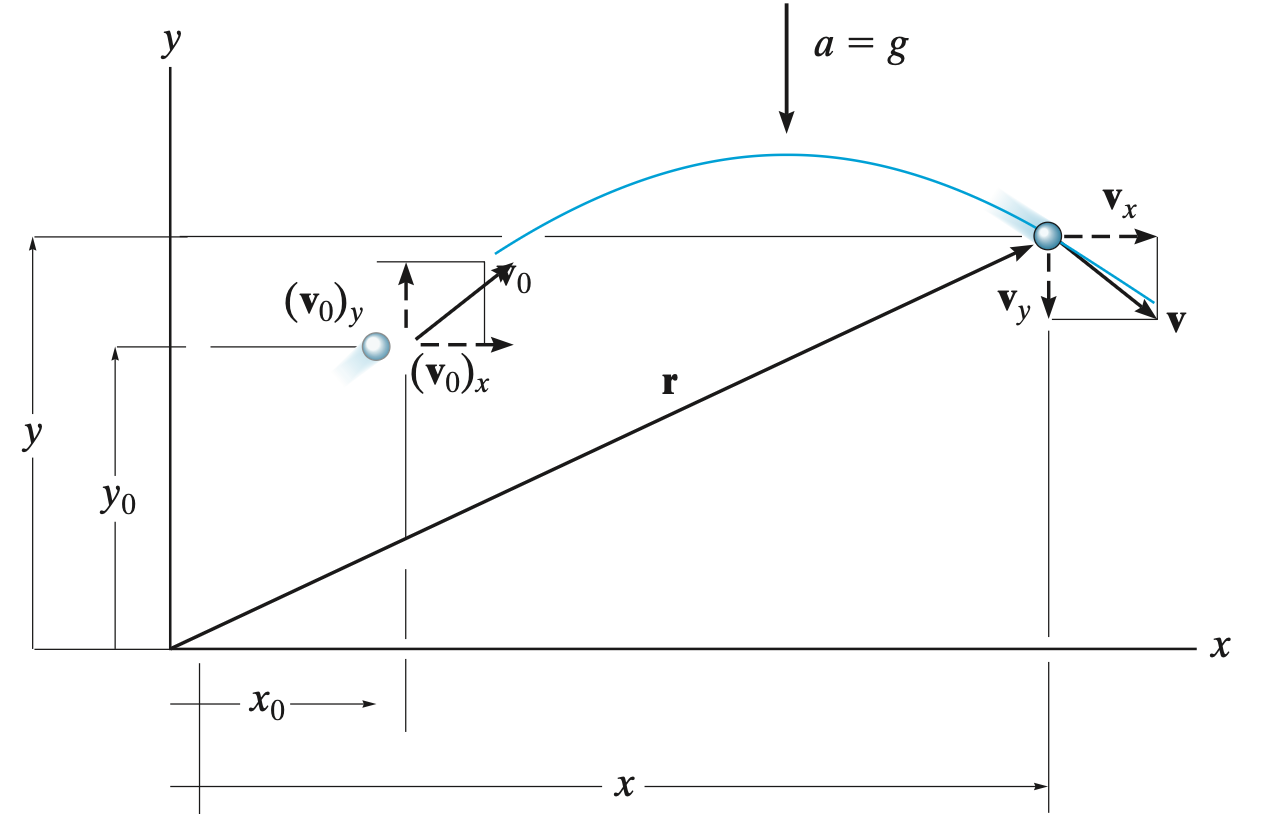

Projectile motion is a special case of particle kinematics where motion occurs simultaneously in two independent rectilinear directions: horizontal and vertical. The motion in each individual direction is analyzed using the same rectilinear kinematic equations. The horizontal motion has constant velocity, while the vertical motion has constant acceleration due to gravity. By separating the motion into x x and y y components, projectile problems can be solved using kinematic relationships.


Initial Velocity Components

If the projectile is launched with speed v 0 v_{0} at angle θ \theta :

v 0 x = v 0 cos ⁡ θ v_{0x} = v_{0}\cos\theta

v 0 y = v 0 sin ⁡ θ v_{0y} = v_{0}\sin\theta

Horizontal Motion

Since a x = 0 a_{x} = 0 , horizontal velocity stays constant:

v x = v 0 x v_{x} = v_{0x}

x = x 0 + v 0 x t x = x_{0} + v_{0x}t

Vertical Motion

Since a y = a_{y} = - g = g = - 9.81 m / s 2 = 9.81\ m/s^{2} = - 32.2 f t / s 2 32.2\ ft/s^{2} :

y = y 0 + v 0 t − 1 2 g t 2 y = y_{0} + v_{0}t - \frac{1}{2}gt^{2}

v y = v 0 y − g t v_{y} = v_{0y} - gt

v y 2 = v 0 y 2 − 2 g ( y − y 0 ) v_{y}^{2} = v_{0y}^{2} - 2g(y - y_{0})

Maximum Height & Impact Velocity

At the top of the trajectory, v y = 0 v_{y} = 0

At any time, v = v = and the direction of the velocity is t a n − 1 ( v y v x ) tan^{- 1}(\frac{v_{y}}{v_{x}}) .


Inclined Surfaces

A projectile can land on an inclined surface or curve instead of level ground. In these problems, make a surface equation and a motion equation and solve for the intersection. For instance, on a constant incline, y = m x y = mx . For a curve with an equation, y ( x ) y(x) is given. A slope triangle may also be provided.

Using the three equations: y = m x y = mx x = v 0 x t x = v_{0x}t y = y 0 + v 0 y t − 1 2 g t 2 y = {y_{0} + v}_{0y}t - \frac{1}{2}gt^{2}

We can solve for x x (the range), y y , and t t (time of flight).

Example 1:

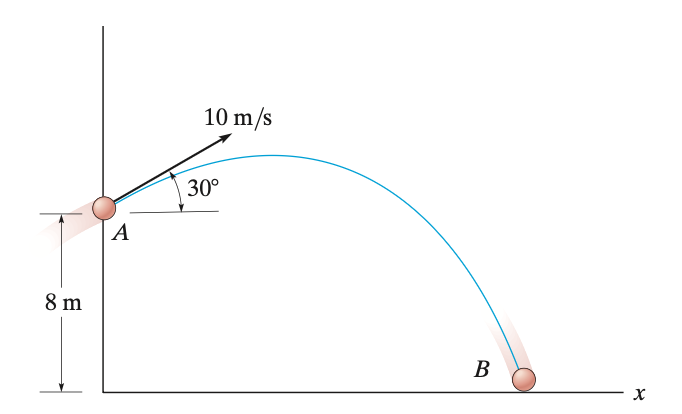

Find the time of flight and range of the ball.


Horizontal component: v 0 x = v 0 c o s ( 30 ) = 10 c o s 30 v_{0x} = v_{0}cos(30) = 10cos30

Vertical component: v 0 y = v 0 s i n ( 30 ) = 10 s i n 30 v_{0y} = v_{0}sin(30) = 10sin30

Solving for time of flight given y 0 = 8 y_{0} = 8 :

y = y 0 + v 0 t − 1 2 g t 2 y = y_{0} + v_{0}t - \frac{1}{2}gt^{2}

0 = 8 + ( 10 s i n 30 ) ( t ) − 1 2 ( 9.81 ) ( t 2 ) 0 = 8 + (10sin30)(t) - \frac{1}{2}(9.81)(t^{2}) Solving by graphing ⇒ \Rightarrow t = 1.88 s t = 1.88\ s

Solving for range with the time of flight:

x = x 0 + v 0 x t x = x_{0} + v_{0x}t

x = ( 10 c o s 30 ) ( 1.88 s ) = 16.28 m x = (10cos30)(1.88\ s) = 16.28\ m

Example 2:

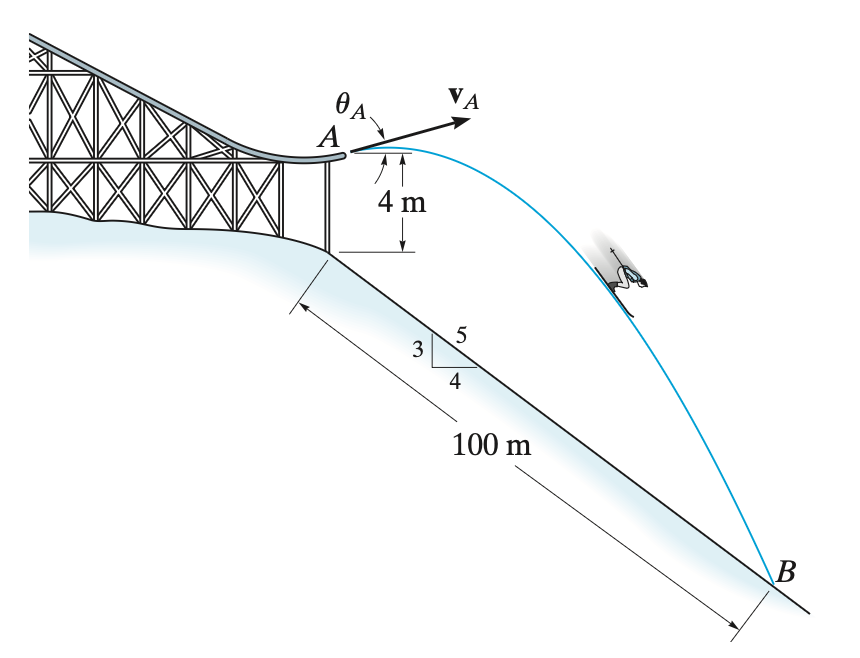

Find the initial speed and time of flight if the skier leaves the ramp at an angle of 25°.


Horizontal component of velocity: v 0 x = v 0 c o s ( 25 ) v_{0x} = v_{0}cos(25)

Vertical component of velocity: v 0 y = v 0 s i n ( 25 ) v_{0y} = v_{0}sin(25)

Total horizontal distance traveled: 4 5 ( 100 m ) = 80 m → \frac{4}{5}(100\ m) = 80\ m \rightarrow

Total vertical distance traveled: 3 5 ( 100 m ) + 4 = 64 m ↓ \frac{3}{5}(100\ m) + 4 = 64\ m \downarrow

x = v 0 x t ⇒ 80 = ( v 0 c o s 25 ) ( t ) x = v_{0x}t\ \ \ \ \ \Rightarrow \ \ \ \ \ 80 = (v_{0}cos25)(t)

y = y 0 + v 0 y t − 1 2 g t 2 ⇒ 0 = 64 + ( v 0 s i n 25 ) ( t ) − 1 2 ( 9.81 ) ( t 2 ) y = y_{0} + v_{0y}t - \frac{1}{2}gt^{2}\ \ \ \Rightarrow \ \ \ \ 0\ = 64\ + (v_{0}sin25)(t) - \frac{1}{2}(9.81)(t^{2})

Solve by graphing both equations: v 0 = 19.4 m / s v_{0} = 19.4\ m/s , t = 4.54 s t = 4.54\ s
