Dynamic Modeling and Simulation of Pumped Thermal Energy Storage

Team: Kaeden Teague and Dr. Hailei Wang

Background

  • PTES provides grid-scale, long-duration energy storage
  • Energy storage is necessary due to the variability in solar and wind power

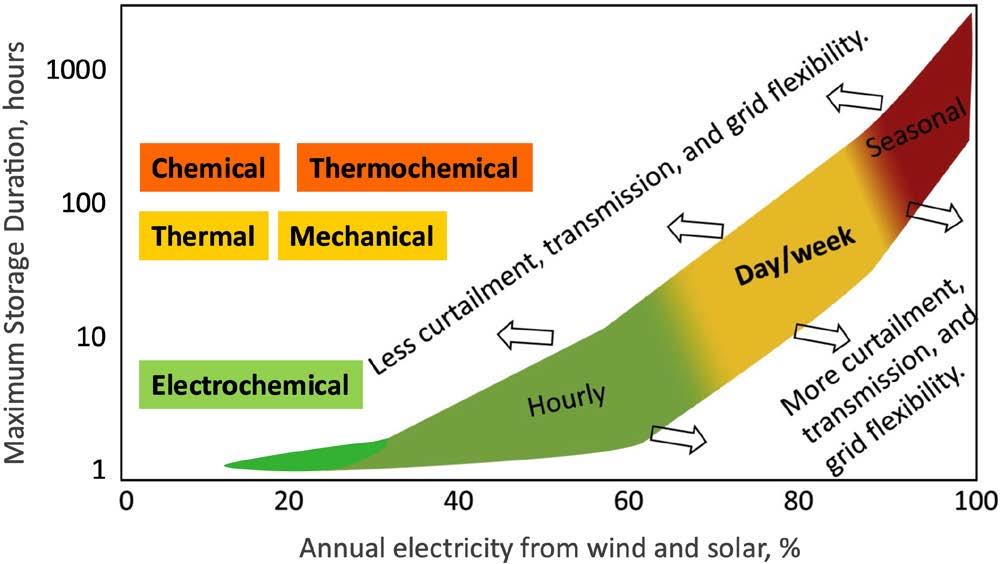

Annual electricity from wind and solar %

Objectives

  • Model realistic operation with ramp-up and shutdown processes
  • Demonstrate load following capabilities with inventory control
  • Investigate the effects of partial load operation
    • Round-trip efficiency
    • Stability of state points

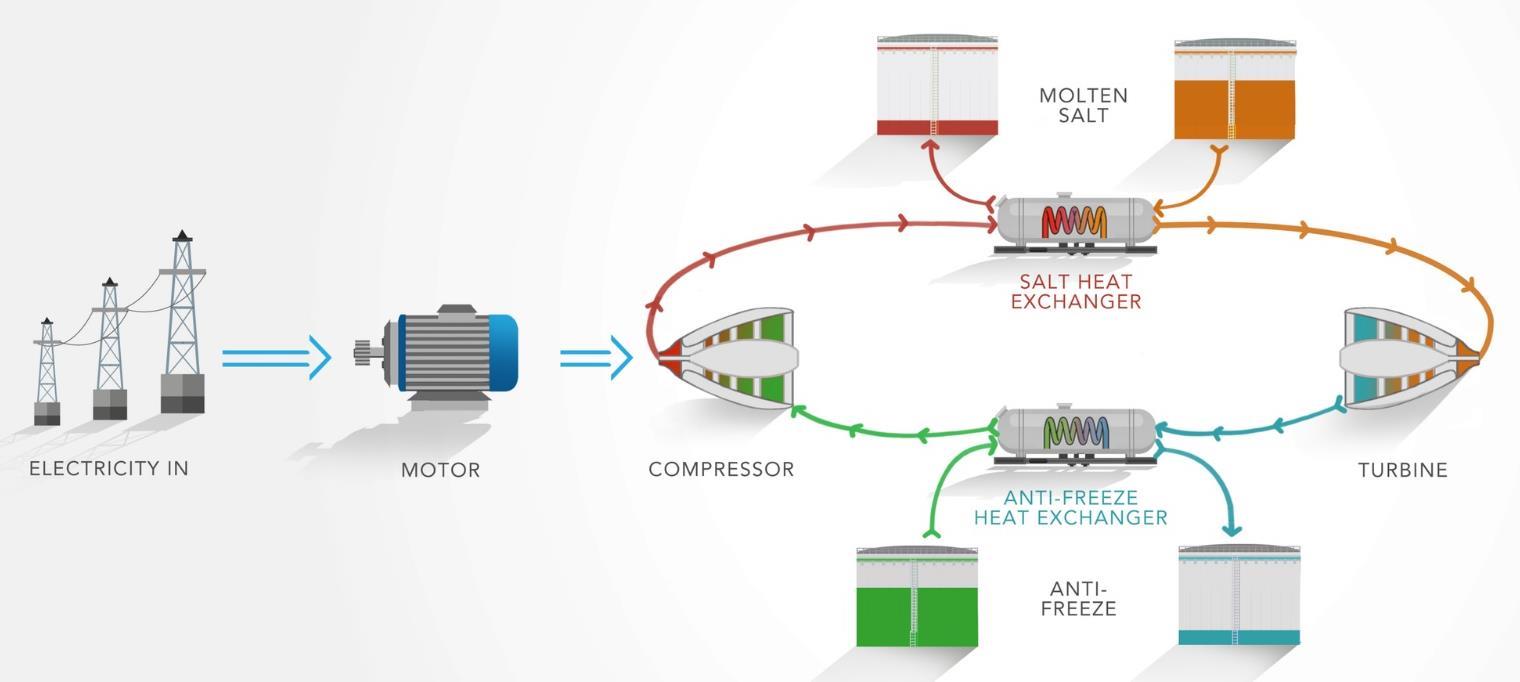

Storing Heat Energy

Storing Heat Energy

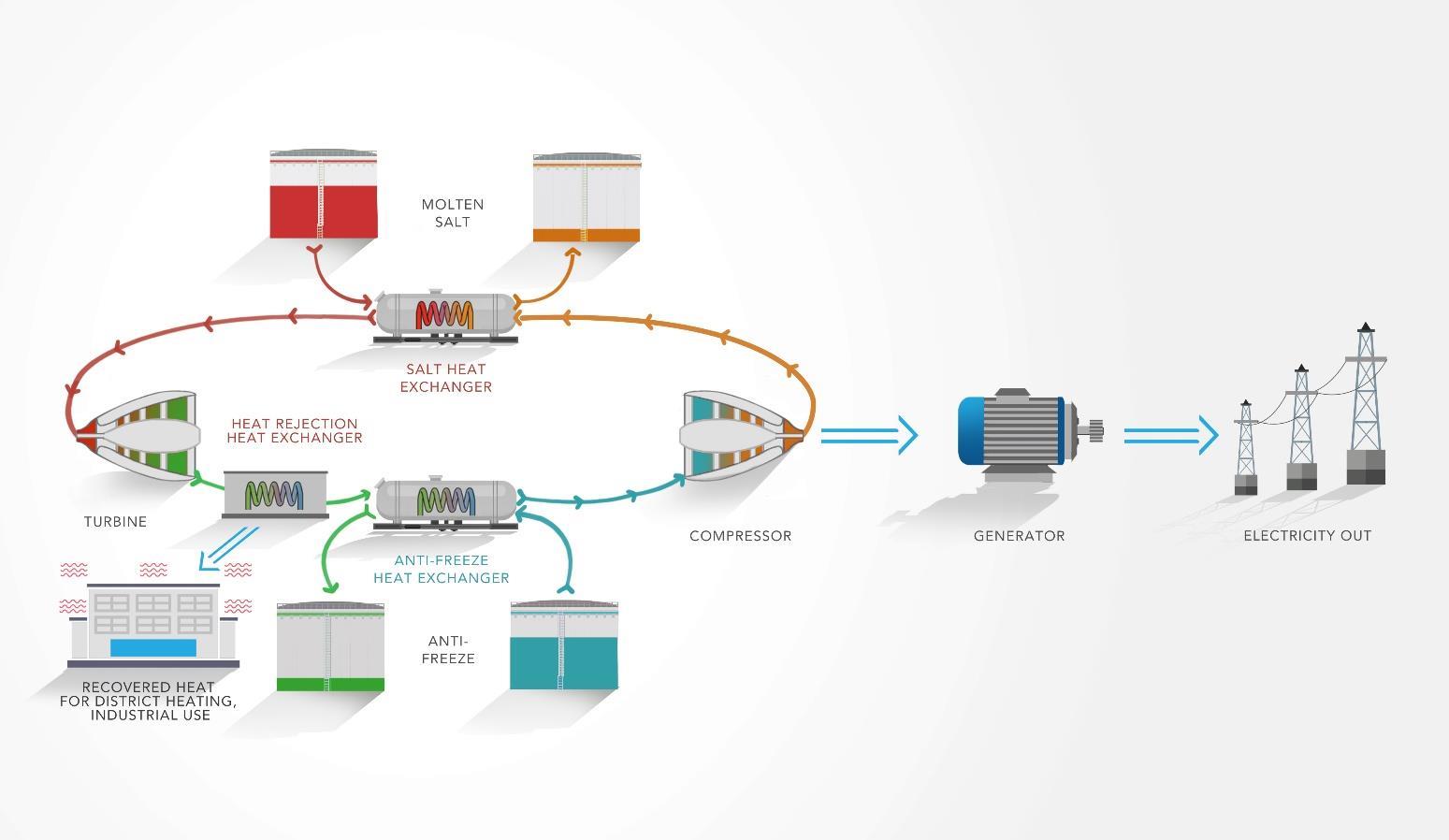

Producing Electricity

Producing Electricity

Methods

  • Developing a dynamic model and system controller in Simulink (using the Simscape library)
  • Wind power generation and power demand datasets are inputs to the controller

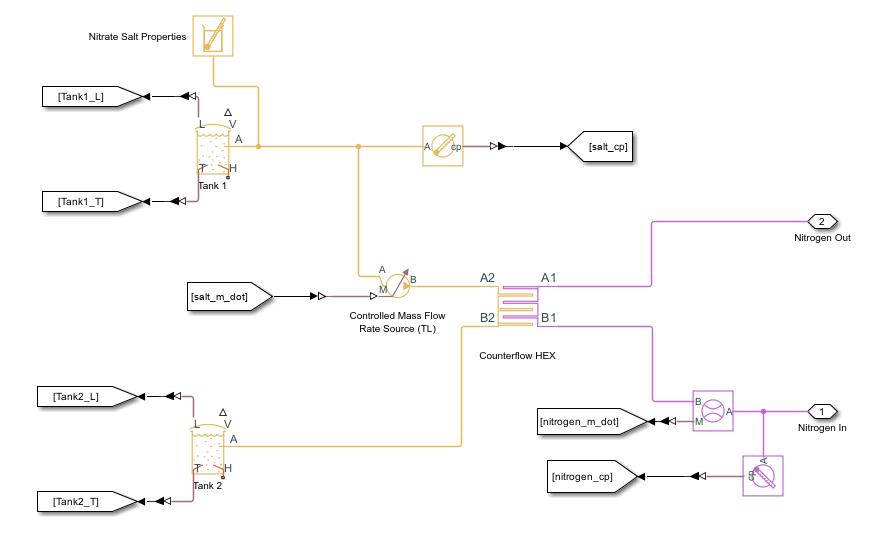

diagram 1

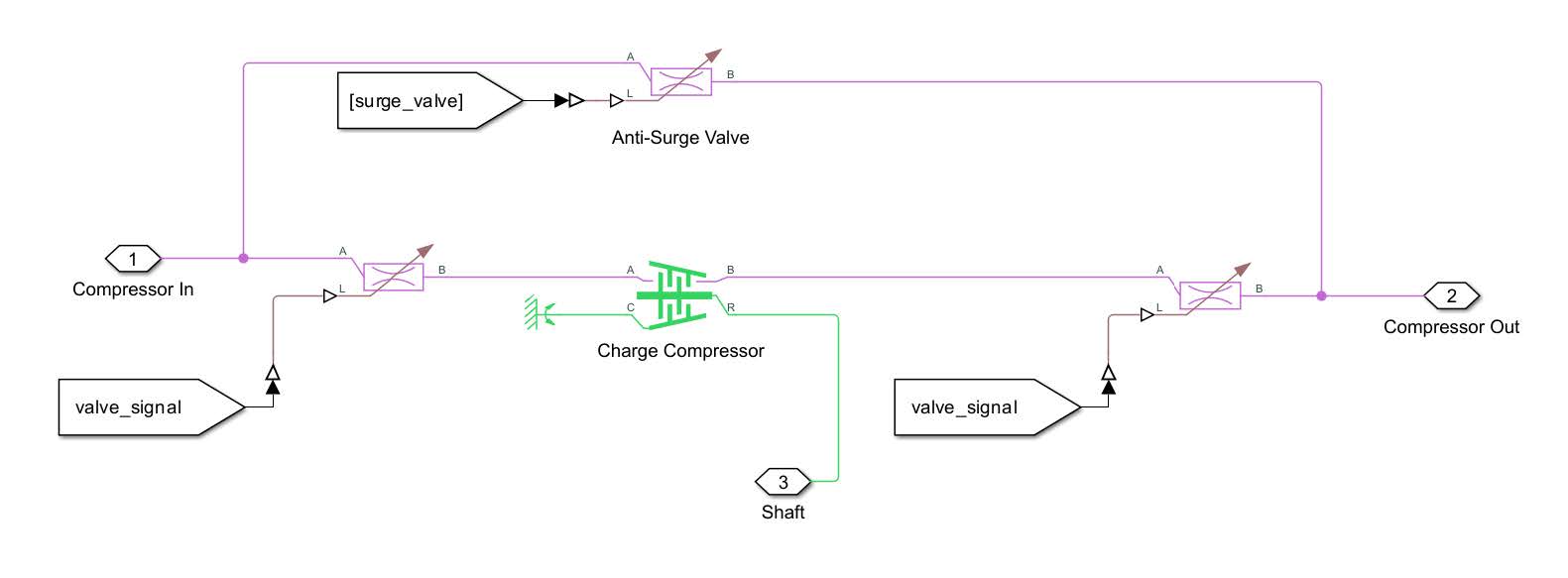

diagram 2
