CMAD Larvicide Spreader

Team: Gavin Brown, Adam Seegmiller, Justin Winsor, Matt Flake

Sponsor: Cache Mosquito Abatement District

Project Description

Design a larvicide spreader that integrates with current oil spreading system that fulfills the following requirements:

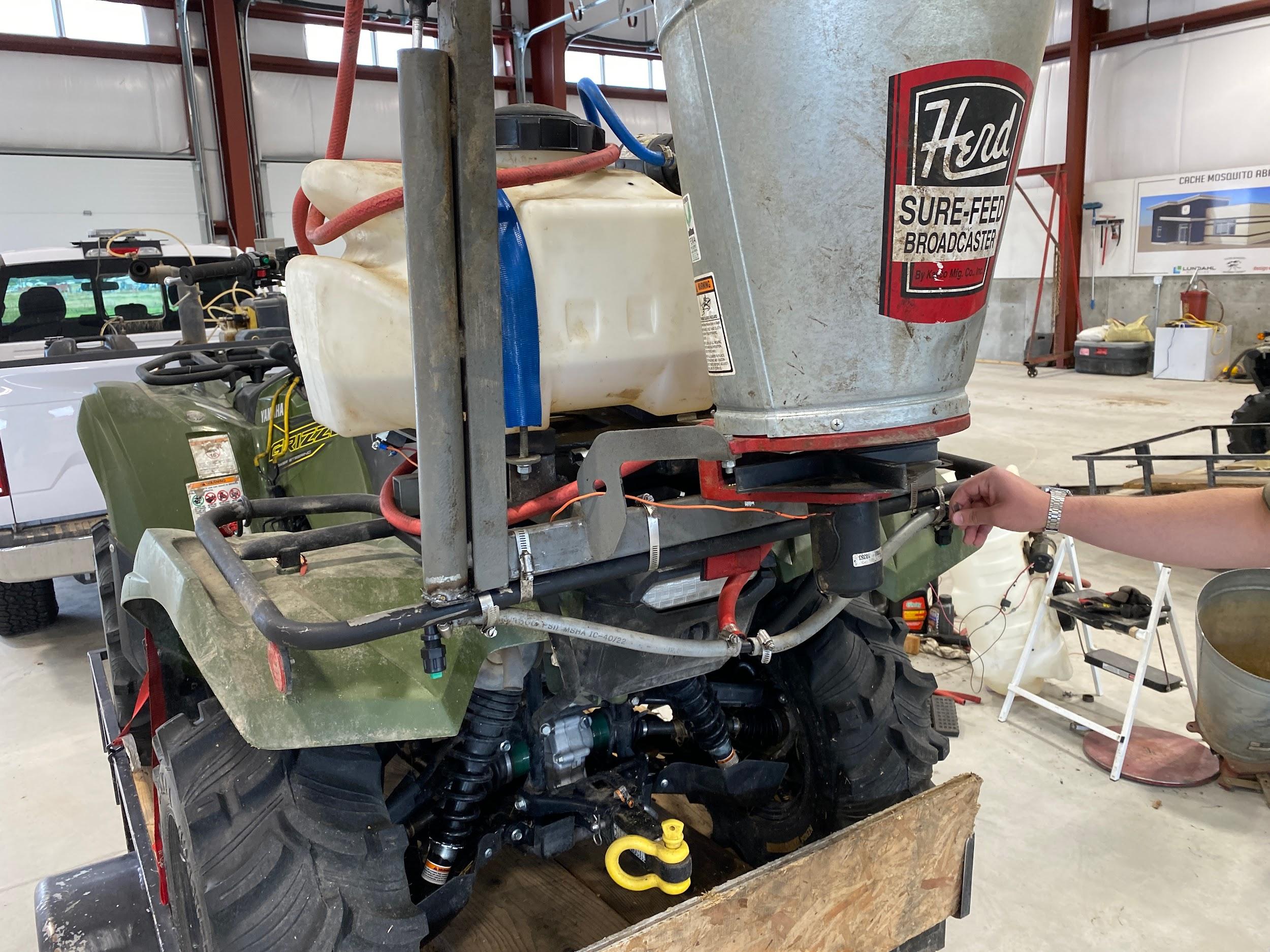

Previous System

Previous System

  • Lighter Weight
    • Rack weight capacity is 187 lbs. Previous system was breaking the racks.
  • Directional Spreading
    • Must be able to spread to either side of the ATV.
  • Easier Calibration
    • System must stay calibrated

Design Description

model of design
  • Switched from steel to aluminum
  • Moved the center of gravity to be on the rack
Speader from behind
Speader from infront
Speader from bottom looking up
Speader top down

Performance Review

  Previous System New System
Overall Weight of the System: 86 lbs 42 lbs
Directional Spreading 180 ° 45-180 °
Capacity of hte Hopper: 40 lbs 50 lbs
Capacity of the Oil Tank: 10 gallons 6 gallons

Conclusion

  • Significant Results:
    • The design is 1/2 the weight of the previous system
    • Spreads 180° with the option of 45° or 90° to either side of the ATV
    • Project was completed on time and under budget
    diagram
  • Lessons Learned:
    • Tolerances are important to make parts easy to build
    • Load analysis can reveal where more structure is needed
    • Project planning should take into account shipping delays for components
  • Recommended Future Work:
    • Improve calibration box
    • Perform field testing
    • Improve storage method of the fence
    diagram
